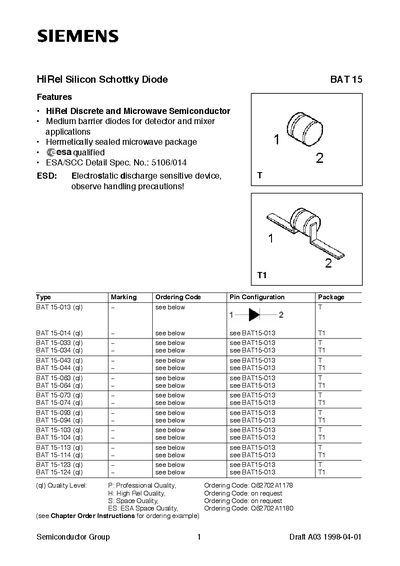

This document is a datasheet for the Siemens BAT 15 series of HiRel Silicon Schottky Diodes. These medium barrier diodes are designed for detector and mixer applications and are available in hermetically sealed microwave packages (T and T1). The series includes various type variants (BAT 15-013 through BAT 15-124) with different quality levels such as Professional, High Rel, Space, and ESA Space Quality.
| Reverse voltage | 3 V |
|---|---|
| Operating temperature range | -55 to +150 °C |
| Storage temperature range | -65 to +175 °C |
| Soldering temperature | +220 °C |
| Total capacitance | 0.20 to 0.60 pF |
| Noise figure | 5.3 to 9.0 dB |
The available quality levels are Professional Quality (P), High Rel Quality (H), Space Quality (S), and ESA Space Quality (ES).
The maximum reverse voltage is 3 V.
The operating temperature range is from -55 to +150 °C.
