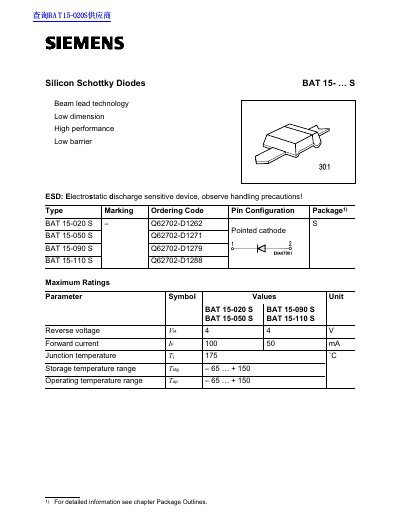

The document describes the Silicon Schottky Diodes BAT 15- ... S, which is an electrostatic discharge sensitive device that requires handling precautions. It features low dimension, high performance, and low barrier characteristics.
This document provides technical data for the BAT BAT 15-020 S, BAT 15-050 S, BAT 15-090 S, and BAT 15-110 S series of Silicon Schottky Diodes. It details maximum ratings such as junction temperature and forward current, along with specific electrical characteristics including diode capacitance, forward voltage, and breakdown voltage for each model.
| Junction temperature | 175 ˚C |
|---|---|
| Forward current | 100 mA |
| Storage temperature range | - 65 … + 150 |
| Reverse voltage | 4V |
| Diode capacitance (BAT 15-020 S) | 0.30 pF |
| Forward voltage (BAT 15-020 S) | 0.26 V |
| Breakdown voltage | 4 V |
Yes, they are ESD: Electrostatic discharge sensitive devices, and handling precautions must be observed.
The maximum junction temperature is 175 ˚C.
