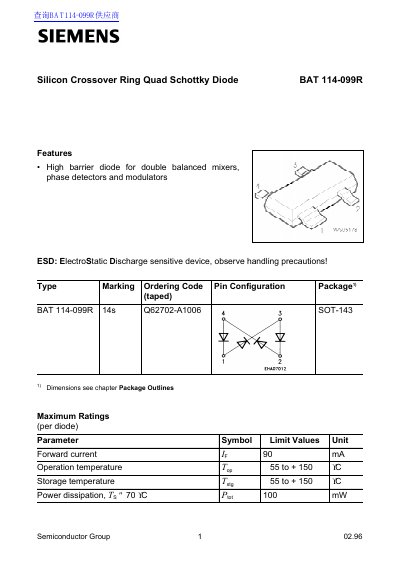

Siemens BAT 114-099R Silicon Crossover Ring Quad Schottky Diode Datasheet

Datasheet 3 pages · 48 KB · EN

The document is a technical datasheet for the Siemens BAT 114-099R, a Silicon Crossover Ring Quad Schottky Diode. It is designed for use in high barrier diode applications such as double balanced mixers, phase detectors, and modulators. The device is housed in a SOT-143 package and is noted as being sensitive to electrostatic discharge (ESD).

The datasheet details the maximum ratings, including a forward current of 90 mA and an operation temperature range of -55 to +150 °C. It also lists specific electrical characteristics such as forward voltage, diode capacitance, and forward resistance, along with thermal resistance values for junction-to-soldering point and junction-to-ambient measurements.

Read online

Siemens BAT 114-099 specifications

Forward current	90 mA
Operation temperature	-55 to +150 °C
Storage temperature	-55 to +150 °C
Power dissipation	100 mW
Forward voltage (typical)	0.7 V
Package type	SOT-143

Source: Siemens BAT 114-099R Silicon Crossover Ring Quad Schottky Diode Datasheet

All Siemens BAT 114-099 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the maximum forward current for this diode?

The maximum forward current is 90 mA.

From: Siemens BAT 114-099R Silicon Crossover Ring Quad Schottky Diode Datasheet

What is the operating temperature range?

The device operates between -55 and +150 °C.
