This document describes the ordering code, pin configuration, marking, package information, maximum ratings, and electrical characteristics of the BAT15-04 Dual Schottky Diode. The product is suitable for DBS mixer applications up to 12 GHz, with low noise figure and low barrier type.

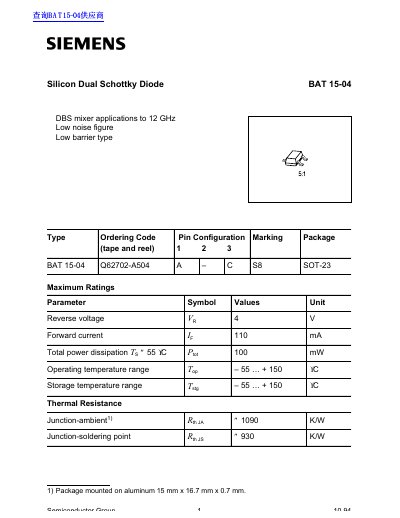

This document is a technical datasheet for the Siemens BAT 15-04, which is a Silicon Dual Schottky Diode designed for DBS mixer applications up to 12 GHz. The device features a low noise figure and a low barrier type construction.
The datasheet provides detailed specifications including maximum ratings such as reverse voltage (4 V) and forward current (110 mA). It also lists electrical characteristics like breakdown voltage, forward voltage matching, and diode capacitance at 25 °C. The component is housed in an SOT-23 package.
| Reverse voltage | 4 V |
|---|---|
| Forward current | 110 mA |
| Total power dissipation | 100 mw |
| Operating temperature range | -55... + 150 °C |
| Package type | SOT-23 |
The device can withstand a maximum reverse voltage of 4 V.
The diode is rated for a maximum forward current of 110 mA.
It operates safely between -55 and +150 °C.
