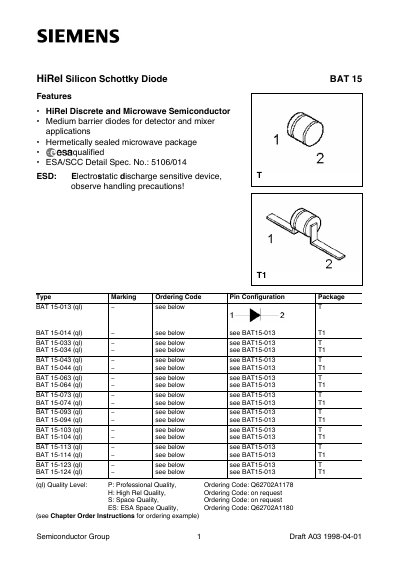

This document describes the features and characteristics of T T1 HiRel Silicon Schottky Diode BAT 15 Semiconductor Group 1. It is suitable for detector and mixer applications, has a medium barrier, and is housed in a hermetically sealed microwave package. It is qualified according to ESA/SCC Detail Spec. No.: 5106/014.
This document is a datasheet for the Siemens BAT 15 series of HiRel Silicon Schottky diodes. These medium barrier diodes are designed for detector and mixer applications and are available in hermetically sealed microwave packages. The document specifies various quality levels including Professional, High Rel, Space, and ESA Space Quality.
| Reverse voltage | 3 V |
|---|---|
| Operating temperature range | -55 to +150 °C |
| Storage temperature range | -65 to +175 °C |
| Soldering temperature | +220 °C |
The available quality levels are Professional Quality (P), High Rel Quality (H), Space Quality (S), and ESA Space Quality (ES).
The maximum reverse voltage is 3 V.
The maximum forward current for these variants is 100 mA.
