The BAT14-098 is a silicon Schottky diode with a low noise figure and medium barrier type. It is suitable for DBS mixer applications with a working frequency of up to 12 GHz. The diode is packaged in a SOD-123 and can withstand a maximum of 90 mA of forward current and 4 V of reverse voltage.

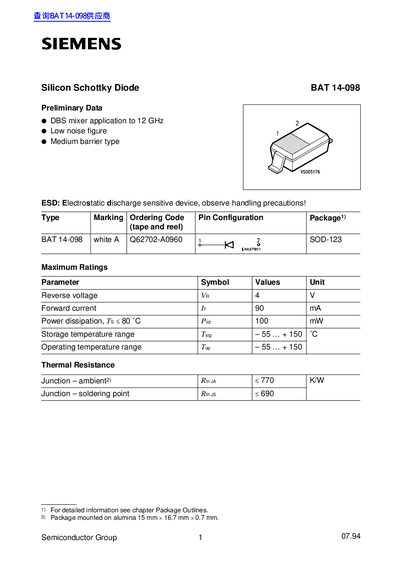

This document provides preliminary data for the Siemens BAT 14-098, a Silicon Schottky diode designed for DBS mixer applications up to 12 GHz. Key features include a low noise figure and a medium barrier type construction. The device is electrostatic discharge (ESD) sensitive and requires careful handling precautions.
| Reverse voltage | 4 V |
|---|---|
| Forward current | 90 mA |
| Power dissipation | 100 mW |
| Operating temperature range | -55...+150 °C |
| Breakdown voltage | 4 V |
| Forward voltage (Ir=10mA) | 0.55 V |
| Diode capacitance | 0.35 pF |
| Package type | SOD-123 |
The operating temperature range is from -55 to +150 °C.
Yes, it is designed for DBS mixer applications up to 12 GHz.
The typical forward voltage is 0.55 V at 10mA.
