BAT 14-03W is a silicon Schottky diode from BAT company. Its rated reverse voltage is 4 V, rated forward current is 90 mA, operating temperature range is -55 to 125 degrees Celsius, storage temperature range is -55 to 150 degrees Celsius, and maximum power dissipation is 100 mW.

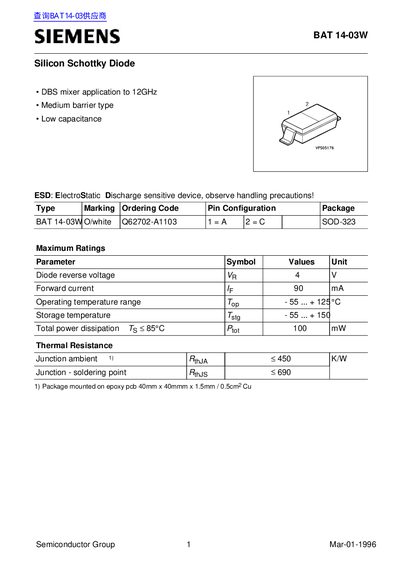

This document is a datasheet for the Siemens BAT 14-03W, a Silicon Schottky Diode designed for DBS mixer applications up to 12GHz. It features a medium barrier type 2 design with low capacitance and is available in the SOD-323 package.
The datasheet provides comprehensive technical data including maximum ratings such as a reverse voltage of 4V and a forward current of 90mA. It also lists specific electrical characteristics at 25°C, such as breakdown voltage and forward voltage, along with graphical representations of forward current and reverse current versus voltage.
| Product Type | Silicon Schottky Diode |
|---|---|
| Application | DBS mixer application to 12GHz |
| Diode reverse voltage | 4 V |
| Forward current | 90 mA |
| Operating temperature range | - 55 ...+ 129°C |
| Storage temperature | - 55... + 150 |
| Total power dissipation | 100 mW |
| Package | SOD-323 |
The maximum reverse voltage is 4 V.
The maximum forward current is 90 mA.
The operating temperature range is from -55°C to +129°C.
