The BAT 14- series are silicon Schottky diodes with a breakdown voltage of 4V and a forward current of 100 mA. They are available in SMD packages with a pointed cathode.

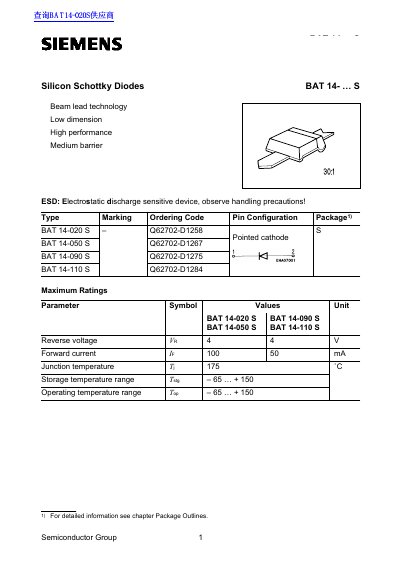

This document provides technical specifications for the Semiconductor Group Silicon Schottky Diode series, specifically models BAT 14-020 S, BAT 14-050 S, BAT 14-090 S, and BAT 14-110 S. The datasheet covers maximum ratings such as reverse voltage up to 110V and junction temperature of 175°C.
| Junction temperature | 175 °C |
|---|---|
| Forward current | 100 mA |
The maximum junction temperature is 175 °C.
Yes, they are ESD: Electrostatic discharge sensitive devices and require handling precautions.
