BAT 14-013 is a high performance silicon Schottky diode manufactured by Texas Instruments. It has a medium barrier and good linearity. The device is suitable for detector and mixer applications. It uses a hermetically sealed microwave package which can withstand high temperatures and humidity.

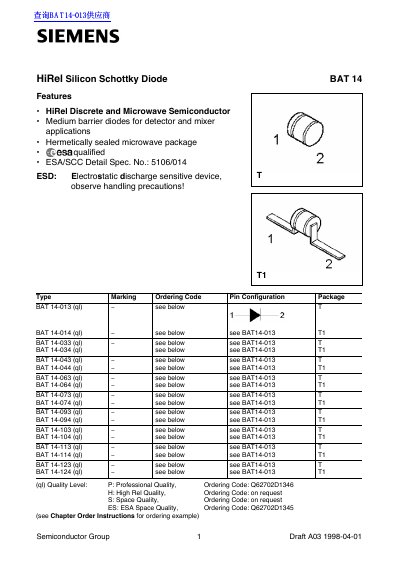

This document is a technical datasheet for the HiRel BAT 14 series of silicon Schottky diodes manufactured by Siemens Semiconductor Group. The device is designed as a medium barrier diode specifically for detector and mixer applications, utilizing a hermetically sealed microwave package.
| Reverse voltage | 3V |
|---|---|
| Operating temperature range | - 55 to + 150 ° C |
| Storage temperature range | - 65 to + 175 ° C |
The diode is designed for detector and mixer applications.
The device uses a hermetically sealed microwave package.
The maximum operating temperature is +150 °C.
