Start here

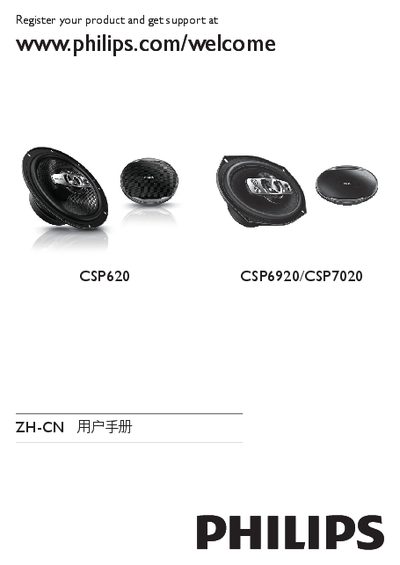

Philips CSP620 CSP6920 CSP7020 Car Stereo Speaker User Manual
This manual introduces the Philips CSP620, CSP6920 and CSP7020 car stereo speakers, covering safety information, package contents and basic product description. It explains the required installation depth, wiring polarity, and the importance of using only the supplied hardware to maintain warranty.
Two installation options are detailed: mounting the speakers in the front or rear door panels, or installing them on the rear‑seat tray. The document also lists the technical specifications for each model, provides troubleshooting guidance, and includes environmental compliance information. This manual is written in Chinese.
Philips CSP620 specifications
| Rated Power (W) | 80 W |
|---|---|
| Peak Music Power (W) | 400 W |
| Sensitivity (dB/W/m) | 90 dB |
| Frequency Response (Hz) | 35‑32 kHz |
| Impedance (Ω) | 4 Ω |
| Magnet Weight (oz) | 8.6 oz |
| Installation Depth (mm) | 59 mm |
Source: Philips CSP620 CSP6920 CSP7020 Car Stereo Speaker User Manual
All Philips CSP620 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What installation depth is required for the speakers?
The speakers need at least 59 mm of depth for installation.
From: Philips CSP620 CSP6920 CSP7020 Car Stereo Speaker User Manual
How should the speaker wires be connected?
Connect the black wire to the speaker’s negative (‑) terminal and the black‑white striped wire to the positive (+) terminal, matching left/right channels.
From: Philips CSP620 CSP6920 CSP7020 Car Stereo Speaker User Manual
What wiring polarity must be used for the left and right speakers?
Connect the black wire to the left speaker and the black‑white striped wire to the right speaker, ensuring the “+” and “‑” terminals are correctly matched.
