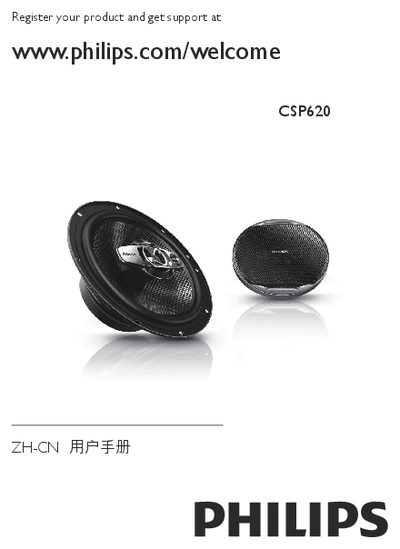

CSP620 car stereo speaker user manual, introduce the features and characteristics, installation methods of the product
This manual introduces the Philips CSP620 car stereo speaker, describing its features, package contents, and recommended installation locations such as door panels or rear seat trays. It also explains safety precautions and warranty considerations.
The guide walks you through measuring mounting depth, preparing the installation template, drilling mounting holes, connecting speaker wires with correct polarity, and securing the speaker grille. It includes product specifications, wiring diagrams, and a troubleshooting section for common issues. This manual is written in Chinese.
| Speaker type | 16.5 cm three‑way coaxial speaker |
|---|---|
| Rated power | 80 W |
| Peak music power | 400 W |
| Sensitivity | 90 dB (W/m) |
| Frequency response | 35 Hz – 32 kHz |
| Impedance | 4 Ω |
| Magnet weight | 8.6 Oz |
Connect the black wire to the left speaker and the black‑white striped wire to the right speaker, ensuring the “+” and “‑” terminals are correctly matched.
