The Philips Nano High-Efficiency Energy-Saving Ceramic Street Light has significant energy-saving effects and can replace traditional 400W high-pressure sodium lamps, saving 70% of energy. It has a high-efficiency reflector with space satellite-level coating that can withstand high temperatures and strong acid and alkali corrosion, with a lifespan of ten years. The lighting angle and uniformity can be adjusted according to customer needs, with high color rendering index (CRI) and minimal light decay. It is suitable for various road lighting applications.
The Philips Nano 150W ceramic street light is a high‑efficiency, energy‑saving road lighting solution. It replaces traditional 400 W high‑pressure sodium lamps, delivering up to 70 % power savings while providing a colour rendering index of 85‑96 and a long lamp life of 12 000‑18 000 hours.

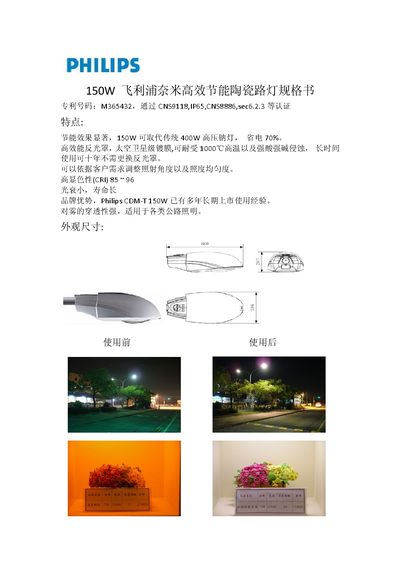

The lamp operates on 220 V AC, draws 0.85 A, and meets IP65 protection for dust and water resistance. It can withstand temperatures up to 1000 °C on its nano‑coated reflector and functions in ambient temperatures from –20 °C to +75 °C. Technical specifications such as lamp efficiency, luminous flux, and illumination uniformity are detailed in the data table. This manual is written in Chinese.
| Input Voltage | AC 220V |
|---|---|
| Input Current | 0.85 A |
| Frequency | 60 Hz / 50 Hz |
| Power Factor | > 0.9 |
| Power Consumption | 170 W (lamp 150 W) |
| Lamp Efficiency | 95 LM/W (yellow) / 88 LM/W (white) |
| Initial Lamp Flux | 14 000 LM (yellow) / 12 700 LM (white) |
| Luminous Flux Maintenance (12 000 h) | > 70 % |
| Working Temperature | -20 °C ~ +75 °C |
| IP Rating | IP65 |
| Lamp Life‑span | 12 000 ~ 18 000 hours |
| Weight | 6.9 kg |
| Colour Rendering Index (CRI) | 85 ~ 96 |
It can replace a traditional 400 W high‑pressure sodium lamp, saving about 70 % of the power consumption.
The lamp has an IP65 rating, providing protection against dust and water.
The lamp is rated for a lifespan of 12 000 to 18 000 hours.
It operates from –20 °C up to +75 °C.
