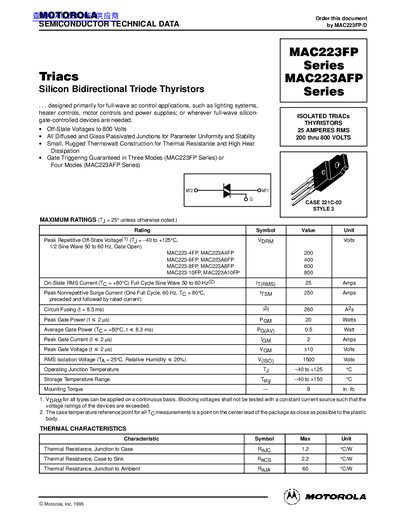

This document is the datasheet of MAC223 series products from Motorola
This document provides technical data for the Motorola Silicon Bidirectional Triode Thyristors in the MAC223FP and MAC223AFP series. These devices are designed primarily for full-wave AC control applications, such as lighting systems, heater controls, motor controls, and power supplies.
The datasheet covers maximum ratings including off-state voltages up to 800 Volts and on-state RMS currents of 25 Amps. It also details electrical characteristics like gate trigger current and voltage, thermal resistance values, and typical performance curves for junction temperature effects.
| Peak Repetitive Off-State Voltage (VDRM) | 200 to 800 Volts |
|---|---|
| Operating Junction Temperature (TJ) | -40 to +125 °C |
| Thermal Resistance, Junction to Case (RθJC) | 1.2 °C/W |
They are designed primarily for full-wave AC control applications such as lighting systems, heater controls, motor controls and power supplies.
The maximum operating junction temperature (TJ) is +125 °C.
