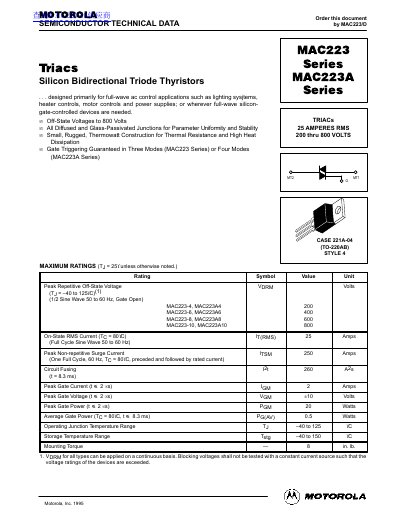

Motorola Thyristor Device Data is a data file about Motorola Thyristor devices. The file describes the features and characteristics of Silicon Bidirectional Triode Thyristors, which are primarily designed for full-wave AC control applications such as lighting systems, heater controls, motor controls, and power supplies. The devices have diffused and glass-passivated junctions for parameter uniformity and stability, and they are constructed with small, rugged Thermowatt construction for thermal resistance and high heat dissipation. The MAC223 series devices guarantee gate triggering in three modes, while the MAC223A series devices guarantee gate triggering in four modes. The devices have a maximum off-state voltage of 800 volts, a maximum on-state RMS current of 25 amps, and a maximum peak non-repetitive surge current of 250 amps.
This document provides technical data for the Motorola MAC223 Series and MAC223A Series Silicon Bidirectional Triode Thyristors. These devices are designed primarily for full-wave AC control applications, including lighting systems, heater controls, motor controls, and power supplies. The document details maximum ratings, electrical characteristics, and thermal properties for various voltage ratings from 200V to 800V.
| Peak Repetitive Off-State Voltage (VDRM) | 200, 400, 600, or 800 Volts |
|---|---|
| On-State RMS Current (IT(RMS)) | 25 Amps |
| Peak Non-repetitive Surge Current (ITSM) | 250 Amps |
| Operating Junction Temperature Range (TJ) | -40 to 125 °C |
| Thermal Resistance, Junction to Case (RθJC) | 1.2 °C/W |
| Thermal Resistance, Junction to Ambient (RθJA) | 60 °C/W |
| Package Style | CASE 221A-04 (TO-220AB) |
They are designed primarily for full-wave AC control applications such as lighting systems, heater controls, motor controls, and power supplies.
The maximum operating junction temperature is 125 °C.
The peak gate current rating is 2 Amps.
