MAC15SM/MAC15SN are bidirectional silicon thyristors produced by Motorola for industrial and consumer applications. They are used for full wave control of AC loads such as appliance controls, heater controls, motor controls, and other power switching applications.

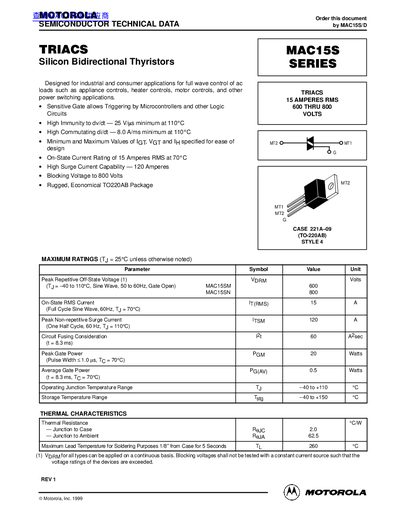

This document provides technical data for the Motorola MAC15S Series Triacs, which are silicon bidirectional thyristors designed for industrial and consumer applications. These devices are intended for full wave control of AC loads, including appliance controls, heater controls, and motor controls.
| On-State RMS Current | 15 A |
|---|---|
| Peak Non-repetitive Surge Current | 120 A |
| Blocking Voltage | 600 V or 800 V |
| Operating Junction Temperature Range | -40 to +110 °C |
| Package Type | TO-220AB |
The peak gate power is 20 Watts for a pulse width less than 1.0 us at 70°C.
The critical rate of rise of off-state voltage is 25 V/us minimum at 110°C.
