This is a specification sheet for MAC12D, MAC12M and MAC12N three silicon bidirectional thyristors, including their maximum ratings, electrical characteristics and other information.

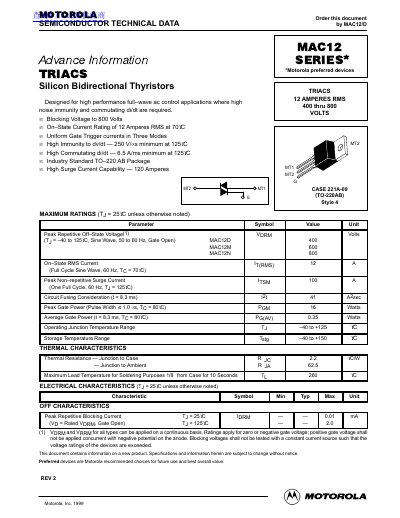

This document provides technical data for the Motorola MAC12 series of Silicon Bidirectional Thyristors (TRIACs). These devices are designed for high-performance full-wave AC control applications requiring high noise immunity and commutating di/dt capabilities. The series offers blocking voltages ranging from 400 to 800 Volts and an on-state current rating of 12 Amperes RMS.
| On-State RMS Current | 12 A |
|---|---|
| Peak Non-repetitive Surge Current | 100 A |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance - Junction to Case | 2.2 °C/W |
| Peak Gate Power (Pulse) | 16 Watts |
The peak repetitive off-state voltage (VDRM) for the MAC12D model is 400 Volts.
The maximum lead temperature for soldering purposes is 260 °C, measured 1/8" from the case for 10 seconds.
