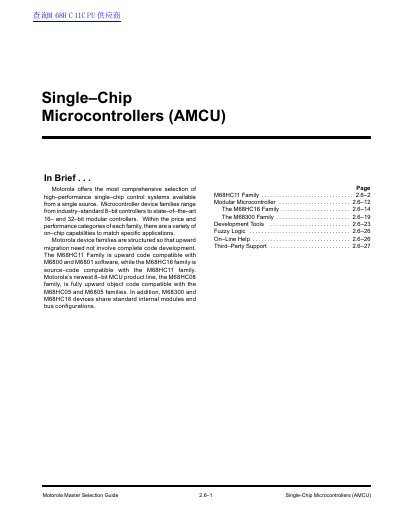

Motorola Single-Chip Microcontrollers (AMCU) Selection Guide
This document serves as a master selection guide for Motorola's Single-Chip Microcontrollers (AMCU). It provides an overview of the company's comprehensive range of high-performance control systems, which span from industry-standard 8-bit controllers to state-of-the-art 16- and 32-bit modular controllers. The guide highlights that these devices are structured to allow upward migration without requiring complete code development.
Read onlineMotorola M68HC08 specifications
| Bus Frequency (M68HC11) | up to 4 MHz |
|---|---|
| ROM Size Range (M68HC11) | 0 to 32K bytes |
| RAM Size Range (M68HC11) | 192 bytes to 1.25K bytes |
| EEPROM Size Range (M68HC11) | 0 to 2K bytes |
| A/D Converter Resolution (M68HC11) | 8–bit or 10–bit |
| PWM Channels (M68HC11) | up to six channels |
Source: Motorola Single-Chip Microcontrollers (AMCU) Selection Guide
All Motorola M68HC08 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the M68HC11 family upward code compatible with previous software?
Yes, it is upward code compatible with M6800, M6801, and M68HC05 software.
From: Motorola Single-Chip Microcontrollers (AMCU) Selection Guide
What is the compatibility relationship between the M68HC16 and M68HC11 families?
The M68HC16 family is source–code compatible with the M68HC11 family.
From: Motorola Single-Chip Microcontrollers (AMCU) Selection Guide
What is the operating temperature range of the MC68HC08JT8?
The device operates from 0 °C up to +70 °C.
From: MOTOROLA MC68HC908JB8/MC68HC08JB8/MC68HC08JT8 M68HC08 Microcontrollers handbook
What supply voltage does the MC68HC08JT8 require?
It requires a supply voltage (VDD) between 2.0 V and 3.6 V.
From: MOTOROLA MC68HC908JB8/MC68HC08JB8/MC68HC08JT8 M68HC08 Microcontrollers handbook
What is the revision number of this data sheet?
The data sheet is revision 3.0, dated January 2004.
Where can I find the most up‑to‑date version of this document?
The latest revision is available on Motorola's semiconductor website at http://motorola.com/semiconductors.
