The RA30H1317M1 is a 30-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 135- to 175-MHz range.
The RA30H1317M1 is a 30‑watt RF MOSFET amplifier module designed for 12.5 V mobile radios operating between 135 MHz and 175 MHz. It features enhancement‑mode MOSFET transistors, low‑power gate control (≈1 mA at 5 V), and a compact 67 × 19.4 × 9.9 mm package.

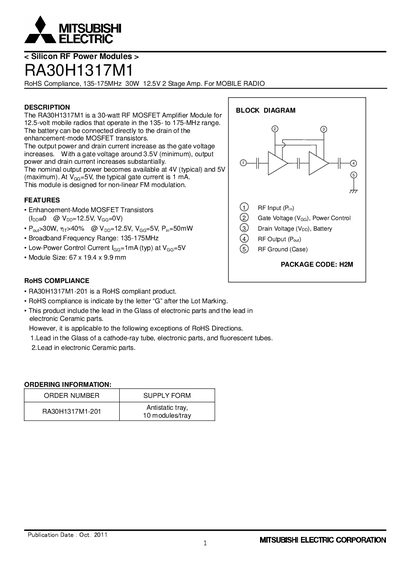

The datasheet provides maximum ratings, electrical characteristics, typical performance curves, mechanical outline, recommended mounting procedures, thermal design guidance, and safety precautions for reliable integration into mobile radio equipment.
| Frequency Range | 135‑175 MHz |
|---|---|
| Output Power (typical) | 30 W |
| Input Power (max) | 100 mW |
| Gate Voltage (typical control) | ≈5 V |
| Drain Voltage (max) | 17 V |
| Total Efficiency (typical) | 40 % |
| Input VSWR (max) | 3:1 |
| Leakage Current (max) | 1 mA |
| ESD sensitivity | down to 1000 V |
M3 screws should be tightened to a torque of 4.0 to 6.0 kgf‑cm.
RoHS compliance is indicated by the letter “G” after the lot marking.
Appropriate ESD precautions are required because the module is sensitive to voltages down to 1000 V.
