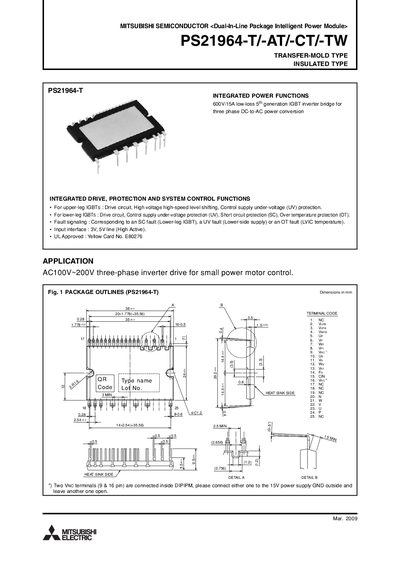

This is a PDF file about Mitsubishi PS21964-T. This product is a 600V/15A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion. It is suitable for AC100V~200V three-phase inverter drive for small power motor control.
This document describes the Mitsubishi PS21964 dual‑in‑line package intelligent power module (IPM). It details the integrated drive, protection and system control functions, including short‑circuit, under‑voltage and over‑temperature protection, as well as fault signaling. Application notes show its use in 100‑200 V three‑phase inverter drives for small power motor control.
The manual includes package dimensions for the T, AT, CT and TW variants, electrical ratings such as collector‑emitter voltage, current limits, thermal resistance, and recommended operating conditions. Wiring recommendations, protection circuit diagrams, timing charts, and typical application circuits are provided to aid designers in implementing the module safely and efficiently.
| Collector‑emitter voltage (VCES) | 600 V |
|---|---|
| Storage temperature range | -40 °C to +125 °C |
| Isolation voltage (Viso) | 1500 V |
| Inverter supply voltage (Veco) | 450 V |
| Mounting torque | 0.69 Nm (typical) |
The isolation voltage rating is 1500 V.
The recommended mounting torque is 0.69 Nm (typical).
