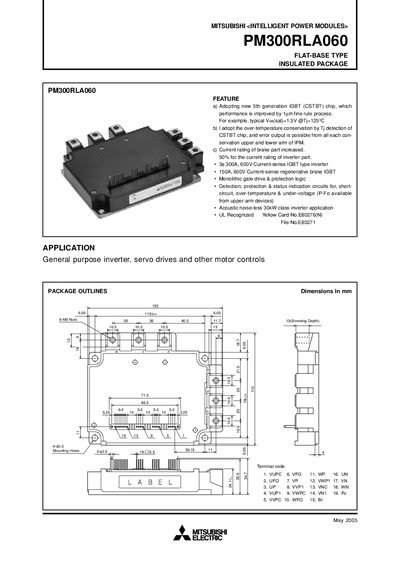

This document is the datasheet of MITSUBISHI PM300RLA060 FLAT-BASE TYPE INSULATED PACKAGE. It introduces the features of the product, including the adoption of the new 5th generation IGBT chip, improved performance, over-temperature protection using CSTBT chip Tj detection, and the ability to output error signals from each fuse. The current rating has been increased by 50% and is used in 30kW class inverters. It has the characteristic of silence.
The PM300RLA060 is a flat‑base, insulated intelligent power module designed for general‑purpose inverter, servo drive and other motor‑control applications. It incorporates a 5th‑generation IGBT (CSTBT) chip, over‑temperature protection, and separate inverter and brake sections.
The document lists electrical and thermal ratings, mechanical dimensions, recommended mounting torque, and testing precautions, along with performance curves and transient thermal impedance data to aid designers in safe and reliable integration.
| Collector Current (Inverter Part) | 300 A |
|---|---|
| Peak Collector Current (Inverter Part) | 600 A |
| Collector Dissipation (Inverter Part) | 1041 W |
| Junction Temperature Range | -20 ~ +150 °C |
| Weight | 800 g |
| Mounting Torque (Main terminal screw) | 2.5‑3.5 Nm |
| Supply Voltage (Protected by VD) | 13.5 ~ 16.5 V |
| Forward Current (FWDi) | 150 A |
The recommended torque for the main terminal screw (M5) is between 2.5 Nm and 3.5 Nm.
The module can operate from –20 °C up to +150 °C junction temperature.
