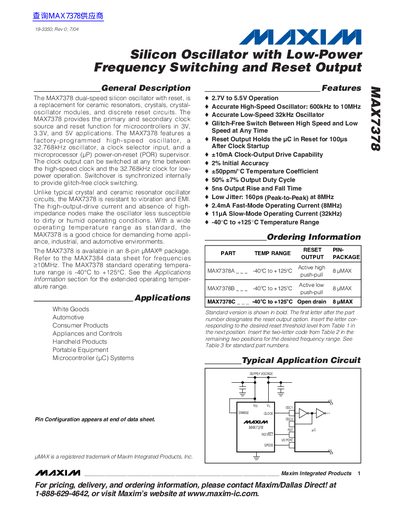

Maxim MAX7378 Silicon Oscillator Datasheet
The MAX7378 is a dual‑speed silicon oscillator with a high‑speed 600 kHz‑10 MHz clock and a fixed 32.768 kHz low‑speed clock. It provides a programmable reset output and can switch between clocks without glitches, making it suitable for microcontroller clocking in 3 V‑5 V systems.
The device is offered in an 8‑pin UMAX package, operates from –40 °C to +125 °C, and features up to +10 mA clock‑output drive, low jitter, and various reset‑output configurations (push‑pull active‑low, push‑pull active‑high, open‑drain). Detailed electrical characteristics, pin descriptions, and ordering information are provided in the datasheet.
Maxim MAX7378 specifications
| Operating Supply Voltage | 2.7 V to 5.5 V |
|---|---|
| High‑Speed Frequency Range | 600 kHz to 10 MHz |
| Low‑Speed Frequency | 32.768 kHz |
| Clock Output Drive Capability | +10 mA |
| Operating Temperature Range | -40 °C to +125 °C |
| Reset Output Hold Time | 100 µs (typical) |
