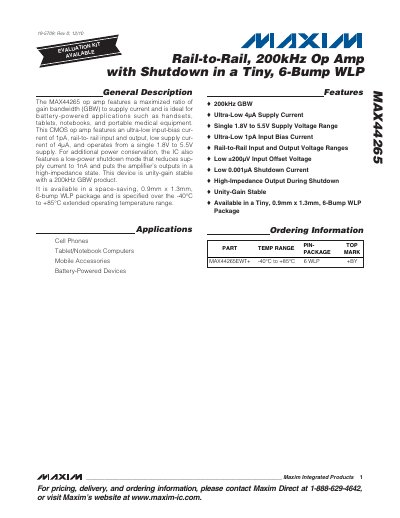

The MAX44265 op amp features a maximized ratio of gain bandwidth (GBW) to supply current and is ideal for battery-powered applications such as handsets, tablets, notebooks, and portable medical equipment. This CMOS op amp features an ultra-low input-bias current of 1pA, rail-to-rail input and output, low supply current of 4µA, and operates from a single 1.8V to 5.5V supply. For additional power conservation, the IC also features a low-power shutdown mode that reduces supply current to 1nA and puts the amplifier’s outputs in a high-impedance state. This device is unity-gain stable with a 200kHz GBW product. It is available in a space-saving, 0.9mm x 1.3mm, 6-bump WLP package and is specified over the -40°C to +85°C extended operating temperature range.
The MAX44265 op‑amp is designed for battery‑powered applications such as handsets, tablets, notebooks and portable medical devices. It features rail‑to‑rail input and output, an ultra‑low 1 pA input‑bias current and a typical supply current of only 4 µA.
The device operates from a single 1.8 V to 5.5 V supply, is unity‑gain stable with a 200 kHz gain‑bandwidth product, and includes a low‑power shutdown mode that reduces supply current to 1 nA while placing the output in a high‑impedance state.
| Gain‑Bandwidth Product | 200 kHz |
|---|---|
| Slew Rate | 0.1 V/µs |
| Output Voltage Swing (high, RL=1 kΩ) | ≈250 mV |
The GBW product is 200 kHz.
