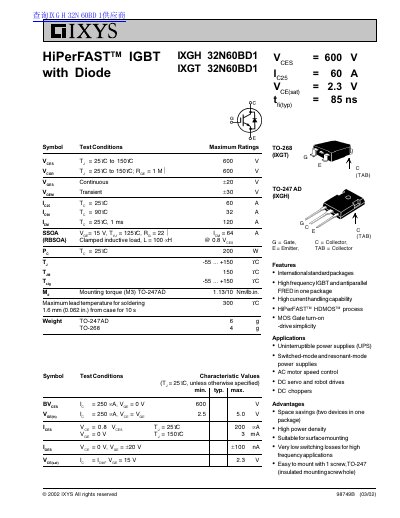

IXYS IXGH/IXGT 32N60BD1 IGBT Module Datasheet
The document is a technical data sheet for the IXYS IXGH 32N60BD1 and IXGT 32N60BD1 integrated gate bipolar transistor (IGBT) modules. These devices combine an IGBT with an antiparallel FRED diode in single packages, specifically TO-247AD and TO-268AA formats.
Read onlineIXYS IXGH32N60B specifications
| Collector-Emitter Voltage (VCE) | 600 V |
|---|---|
| Continuous Collector Current at 25°C | 60 A |
| Collector Current at 90°C | 32 A |
| Package Type (IXGH) | TO-247AD |
| Package Type (IXGT) | TO-268 |
| Thermal Resistance Junction-to-Case | 0.62 K/W |
All IXYS IXGH32N60B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these IGBT modules?
They are suitable for uninterruptible power supplies, switched-mode and resonant-mode power supplies, AC motor speed control, DC servo drives, robot drives, and DC choppers.
What is the maximum mounting torque for the TO-247AD package?
The maximum mounting torque for the TO-247AD package is 1.13 Nm (or 10 lb.in).
What are the applications for the IXGH32N60B?
The device is suitable for PFC circuits, AC motor speed control, DC servo and robot drives, DC choppers, and various power supplies.
What is the typical saturation voltage (VCE(sat))?
The typical saturation voltage is 2.5 V when the collector current is IC90 and VGE is 15 V.
