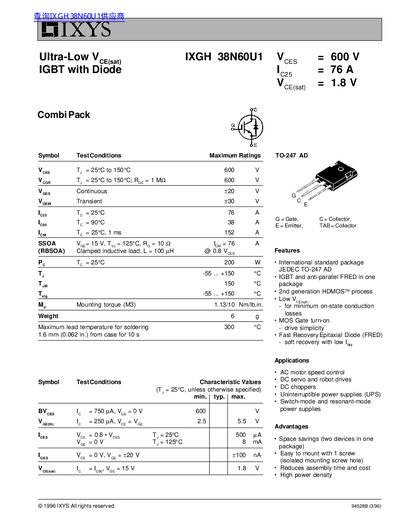

IXYS IXGH 38N60U1 IGBT with Diode Datasheet
The document describes the IXGH 38N60U1, a Combi Pack device combining an IGBT and an anti-parallel Fast Recovery Epitaxial Diode (FRED) within a single JEDEC TO-247 AD package. This design offers space savings by integrating two devices into one unit with isolated mounting screw holes for easy installation.
Read onlineIXYS IXGH 38N60 specifications
| Collector-Emitter Voltage (Vces) | 600 V |
|---|---|
| Continuous Collector Current (Ic) | 76 A at 25°C |
| Package Type | TO-247 AD |
| Mounting Torque (M3) | 1.13 Nm / 10 lb.in. |
| Weight | 6 g |
All IXYS IXGH 38N60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for this device?
Applications include AC motor speed control, DC servo and robot drives, DC choppers, UPS systems, and switch-mode power supplies.
What is the maximum lead temperature for soldering?
The maximum lead temperature for soldering is 300 °C.
What are the main applications for the IXGH 38N60?
The module is suitable for AC motor speed control, DC servo and robot drives, DC choppers, and uninterruptible power supplies.
What is the maximum lead temperature for soldering?
The maximum lead temperature for soldering is 300 °C for 1.6 mm from the case for 10 seconds.
