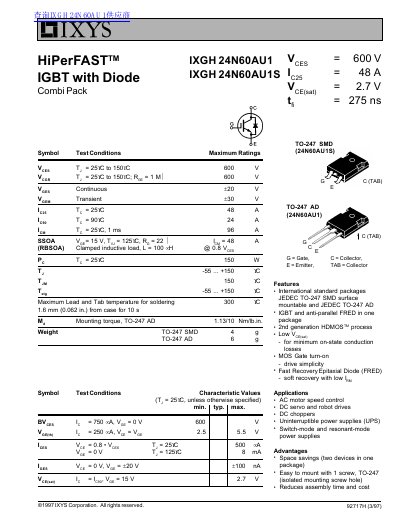

IXYS IXGH 24N60AU1/IXGH 24N60AU1S IGBT Datasheet
This document is a datasheet for the IXYS IXGH 24N60AU1 and IXGH 24N60AU1S, which are Combi Pack devices combining an IGBT and an anti-parallel Fast Recovery Epitaxial Diode (FRED) in a single TO-247 SMD package. The device features a 600V voltage rating and a continuous current of 48A at 25°C, designed for applications such as AC motor speed control, DC servo drives, and uninterruptible power supplies.
The datasheet provides maximum ratings, characteristic values for both the IGBT and the FRED diode, and detailed electrical performance curves. It includes specifications for switching times, saturation voltage, gate charge, and transient thermal impedance, along with recommended mounting torque and footprint dimensions.
IXYS IXGH 24N60A specifications
| Collector-Emitter Voltage (Vces) | 600 V |
|---|---|
| Continuous Collector Current (Ic) | 48 A |
| Operating Temperature Range | -55 ... +150 °C |
| Thermal Resistance Junction-to-Case (RthJC) | 0.83 K/W |
Source: IXYS IXGH 24N60A IGBT Datasheet
