The document introduces the features and characteristics of IXYS' HiPerFASTTM IGBT product, including international standard package, high current handling capability, newest generation HDMOSTM process, MOS gate turn-on - drive simplicity, etc. The product is suitable for applications such as PFC circuits, AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switched-mode and resonant-mode power supplies.

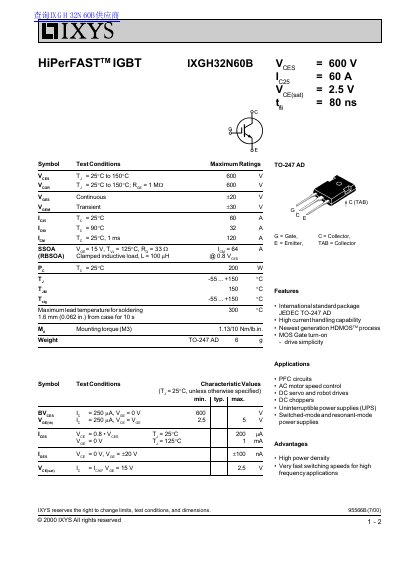

This document provides the technical specifications for the IXYS IXGH32N60B, a HiPerFAST IGBT designed for high current handling and high-frequency applications. It features an international standard JEDEC TO-247 AD package and utilizes the newest generation HDMOS process.
| Package Type | TO-247 AD |
|---|---|
| Thermal Resistance Junction-to-Case (RthJC) | 0.62 K/W |
| Turn-on Delay Time (td(on)) | 25 ns |
| Turn-off Delay Time (td(off)) | 100 ns |
The device is suitable for PFC circuits, AC motor speed control, DC servo and robot drives, DC choppers, and various power supplies.
The typical saturation voltage is 2.5 V when the collector current is IC90 and VGE is 15 V.
