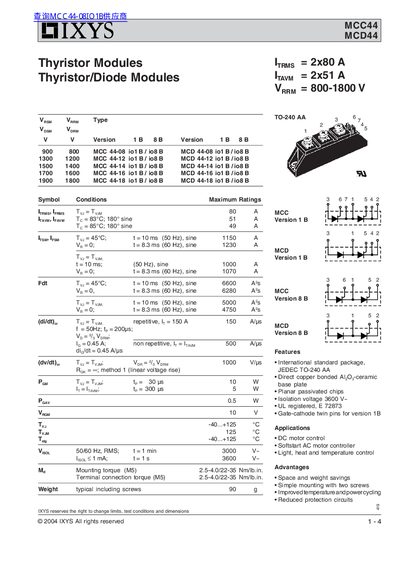

IXYS MCC44/MCD44 Thyristor Modules Datasheet
Datasheet 4 pages · 155 KB · EN
This document provides technical specifications and characteristics for the IXYS 419MCC44 and MCD44 thyristor modules. Key features include an international standard JEDEC TO-240 AA package with a direct copper bonded Al2O3-ceramic base plate and planar passivated chips.
Read onlineIXYS MCC44 specifications
| RMS Current (ITRMS) | 80 A |
|---|---|
| Average Current (ITAVM) | 51 A |
| Surge Current (ITSM) | 1150 A |
| Package Type | JEDEC TO-240 AA |
| Operating Temperature (TVJ) | -40...+125 °C |
All IXYS MCC44 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these modules?
These modules are suitable for DC motor control, softstart AC motor controllers, and light, heat, and temperature control.
What is the isolation voltage?
The modules have an isolation voltage of 3600 V~.
What is the maximum allowable acceleration?
The maximum allowable acceleration for these modules is 50 m/s².
What is the maximum voltage rating for these modules?
The modules are rated for voltages between 800 V and 1800 V.
