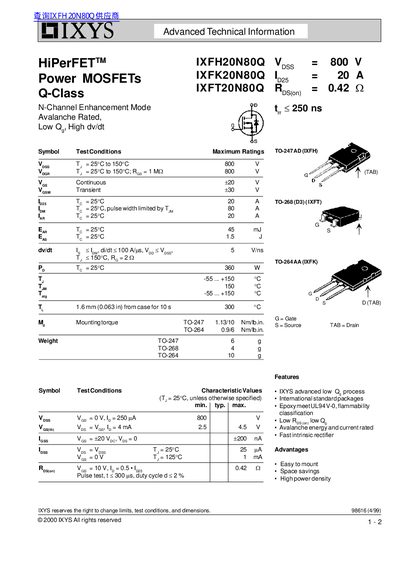

IXYS IXFH20N80Q/IXFK20N80Q/IXFT20N80Q HiPerFET Power MOSFET Datasheet
This document provides technical specifications for the IXYS HiPerFETTM Power MOSFETs Q-Class N-Channel Enhancement Mode series, specifically the IXFH20N80Q, IXFK20N80Q, and IXFT20N80Q models. It details maximum ratings, characteristic values, and advanced technical information including electrical parameters such as drain-source voltage, on-resistance, and switching times.
Read onlineIXYS IXFH20N80Q specifications
| Drain-Source Voltage (VDS) | 800 V |
|---|---|
| Continuous Drain Current (ID) | 20 A |
| On-Resistance (RDS(on)) | 0.42 Ohms |
| Operating Junction Temperature (TJ) | -55 to +150 C |
| Package Types | TO-247, TO-264, TO-268 |
