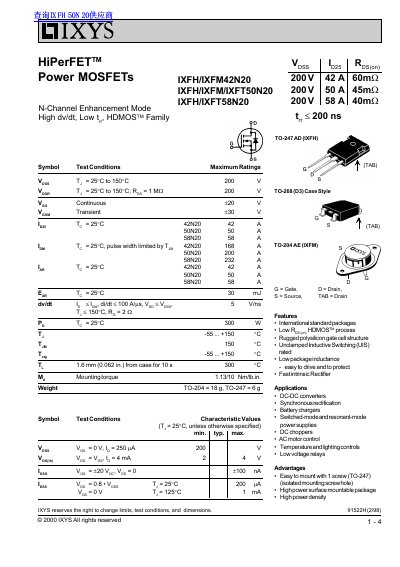

IXYS IXFH/IXFM42N20 IXFH/IXFM/IXFT50N20 IXFH/IXFT58N20 handbook
This document provides technical specifications for the IXYS HiPerFETTM family of Power MOSFETs, specifically models 42N20, 50N20, and 58N20. These devices feature a high dv/dt capability, low turn-off time (trr), and are part of the HDMOSTM family designed for robust performance in power electronics.
Read onlineIXYS 50N20 specifications
| Drain-Source Breakdown Voltage (VDS) | 200 V |
|---|---|
| Continuous Drain Current (42N20) | 42 A |
| Continuous Drain Current (58N20) | 58 A |
| Maximum Junction Temperature (TJ) | +150 /G176C |
| Package Types | TO-247 AD (IXFH), TO-204 AE (IXFM) |
Source: IXYS IXFH/IXFM42N20 IXFH/IXFM/IXFT50N20 IXFH/IXFT58N20 handbook
All IXYS 50N20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The device can operate with a junction temperature up to 150°C.
From: IXYS IXFH/IXFM42N20 IXFH/IXFM/IXFT50N20 IXFH/IXFT58N20 handbook
How much mounting torque is required for the TO-247 package?
You must apply a mounting torque of 1.13 Nm or 10 lb.in.
From: IXYS IXFH/IXFM42N20 IXFH/IXFM/IXFT50N20 IXFH/IXFT58N20 handbook
What are the maximum ratings for gate-source voltage?
The continuous gate-source voltage is ±20 V, and the transient limit is ±30 V.
What is the mounting torque for these MOSFETs?
The recommended mounting torque is 1.13 Nm or 10 lb.in.
What is the maximum drain‑source voltage rating?
The devices are rated for a maximum drain‑source voltage of 200 V.
What is the continuous drain current rating?
Both MOSFETs can handle a continuous drain current of 50 A.
