Key facts
- Brand
- IXYS
- Model
- IXGH32N50B
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-11
Start here

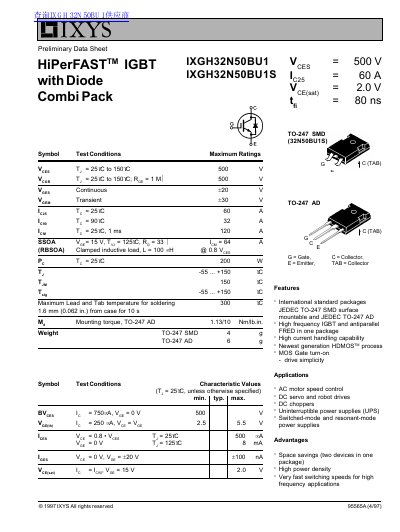

IXYS IXGH32N50BU1/IXGH32N50BU1S Preliminary Data Sheet
Datasheet 2 pages · 51 KB · EN
This document provides preliminary technical specifications for the IXYS IXGH32N50BU1 and IXGH32N50BU1S devices. These components feature a High current handling capability MOS Gate turn-on IGBT combined with an antiparallel FRED (Fast Recovery Diode) in one package, designed to save space and increase power density.
Read onlineAll IXYS IXGH32N50B documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum mounting torque required for the TO-247 AD package?
The minimum recommended mounting torque is 1.13 Nm or 10 lb.in.
From: IXYS IXGH32N50BU1/IXGH32N50BU1S Preliminary Data Sheet
What are the maximum dimensions for the TO-247 SMD outline?
The maximum length is 21.46 mm and the maximum width is 19.81 mm.
From: IXYS IXGH32N50BU1/IXGH32N50BU1S Preliminary Data Sheet
What is the maximum lead temperature for soldering?
The maximum lead temperature for soldering is 300 °C for 10 seconds.
