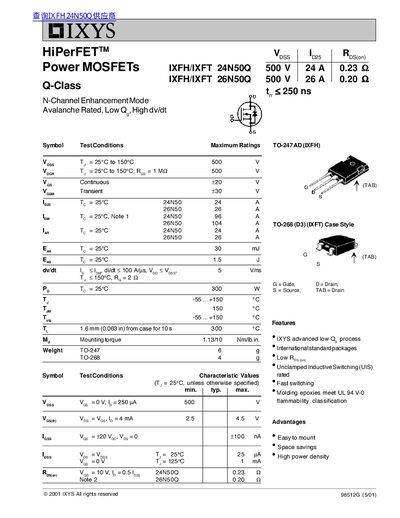

IXYS IXFH/IXFT 24N50Q and 26N50Q Power MOSFET Datasheet
Datasheet 4 pages · 136 KB · EN
This document provides technical specifications and characteristics for the IXFH/IXFT 24N50Q and 26N50Q series of Power MOSFETs. These devices are part of the HiPerFET Q-Class family, designed as N-Channel Enhancement Mode transistors with avalanche rating, low input capacitance (Ciss), and high dv/dt capability.
Read onlineIXYS 26N50Q specifications
| Continuous Drain Current (Id) – 24N50Q | 24 A |
|---|---|
| Continuous Drain Current (Id) – 26N50Q | 26 A |
| Pulsed Drain Current (Id) – 24N50Q | 96 A |
| Typical On‑Resistance (Rds(on)) – 24N50Q | 0.23 Ω |
| Typical On‑Resistance (Rds(on)) – 26N50Q | 0.20 Ω |
| Package Weight (TO‑247) | 6.9 g |
| Mounting Torque | 1.13 N·m |
