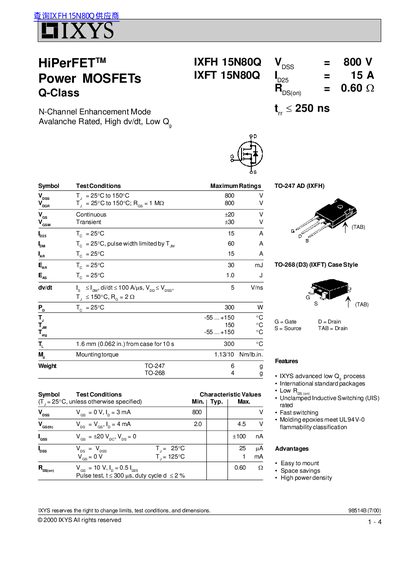

IXYS IXFH/IXFT 15N80Q Power MOSFET Datasheet
This document provides technical specifications and characteristics for the IXYS IXFH 15N80Q and IXFT 15N80Q Power MOSFETs. These devices are N-channel enhancement mode, avalanche rated, high dv/dt, and low Q-class components available in TO-247 (AD) and TO-268 (D3) packages.
The datasheet details maximum ratings such as a drain-source voltage of 800V and continuous current of 15A. It includes electrical characteristics like on-resistance, gate charge, and capacitance values, along with thermal resistance data and safe operating area curves.
IXYS 15N80Q specifications
| Drain-Source Voltage (V_DSS) | 800 V |
|---|---|
| Continuous Drain Current (I_D) | 15 A |
| On-Resistance (R_DS(on)) | 0.60 Ohms |
