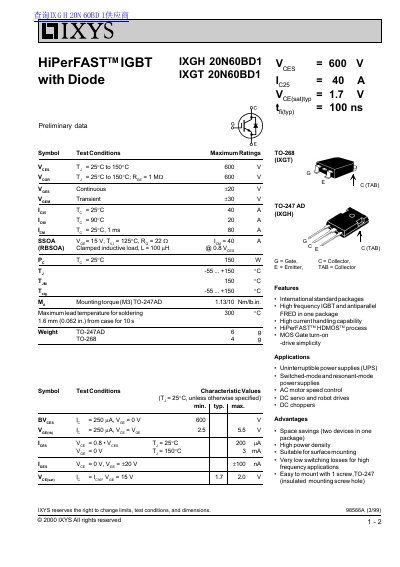

IXYS IXGH 20N60BD1 IXGT 20N60BD1 Preliminary Data
Datasheet 2 pages · 52 KB · EN
This document provides preliminary data for the IXGH 20N60BD1 and IXGT 20N60BD1, which are HiPerFAST™ IGBTs with an antiparallel FRED diode in a single package. The devices feature a MOS gate turn-on drive and are designed for high-frequency applications requiring high current handling capability.
Read onlineIXYS IXGH 20N60B specifications
| Operating Temperature Range | -55...+150 °C |
|---|---|
| Package Type | TO-247AD |
| Reverse Diode Peak Current | 30 A |
All IXYS IXGH 20N60B documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these IGBTs?
They are suitable for uninterruptible power supplies, switched-mode power supplies, AC motor speed control, and DC servo drives.
What is the mounting torque for the TO-247AD package?
The mounting torque for the TO-247AD package is 1.13/10 Nmi/lb.in.
What are the recommended mounting torques for the TO-247 AD and TO-268 packages?
The recommended mounting torque is 1.13 Nm (10 lb.in) for the TO-247 AD package and 1.0 Nm (9 lb.in) for the TO-268 package.
