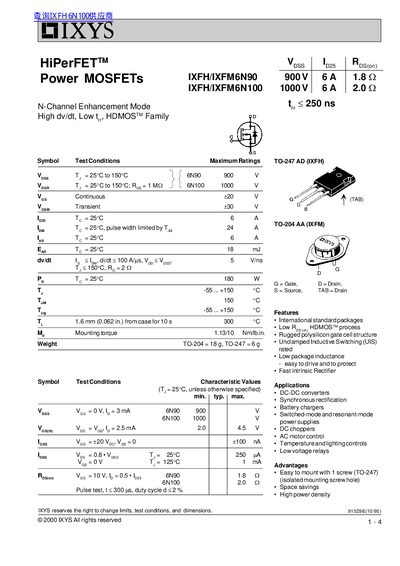

IXYS IXFH/IXFM6N90 IXFH/IXFM6N100 handbook
This document provides technical specifications for the IXYS HiPerFETTM Power MOSFETs, specifically the N-Channel Enhancement Mode devices with model numbers 6N90 and 6N100. It covers maximum ratings, characteristic values, and application information for these components.
Read onlineIXYS 6N90 specifications
| Drain-Source Voltage (VDS) | 900 V (6N90), 1000 V (6N100) |
|---|---|
| Continuous Drain Current (ID) | 6 A |
| Maximum Junction Temperature (TJ) | 150 /G176C |
| Package Types | TO-247 AD (IXFH), TO-204 AA (IXFM) |
| RDS(on) at VGS=10V, ID=0.5A | 1.8 /G87 (6N90), 2.0 /G87 (6N100) |
All IXYS 6N90 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these MOSFETs?
They are suitable for DC-DC converters, synchronous rectification, battery chargers, and AC motor control.
What is the maximum operating temperature?
The maximum junction temperature is 150 degrees Celsius.
What are the model numbers covered in this datasheet?
The document covers IXFH 16N90Q, IXFK 16N90Q, and IXFT 16N90Q.
What is the maximum operating temperature?
The maximum junction temperature (TJ) is +150 °C.
What are the applications for these MOSFETs?
They are suitable for switch-mode and resonant-mode power supplies, motor controls, UPS systems, and DC choppers.
What is the mounting torque for TO-204 packages?
The recommended mounting torque is 1.13 Nm or 10 lb.in.
