32N50BS is a high power transistor produced by IXYS. It uses international standard TO-247 SMD and JEDEC TO-247 AD packages, has high current handling capability, newest generation HDMOSTM process, MOS gate turn-on drive simplicity, and is suitable for PFC circuits, AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switched-mode and resonant-mode power supplies.

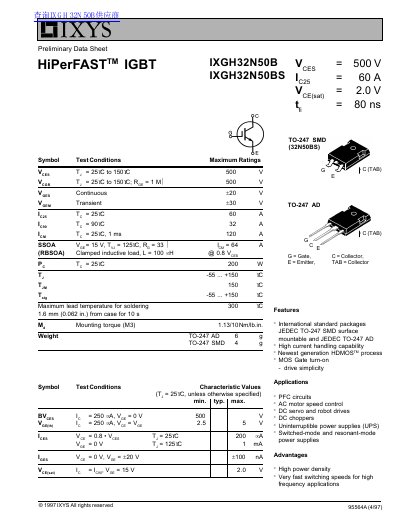

This document is a preliminary data sheet for the IXYS IXGH32N50B and IXGH32N50BS HiPerFAST IGBT modules. The device utilizes the newest generation HDMOS process and features MOS gate turn-on for drive simplicity. It is designed for high current handling and high power density in TO-247 SMD packages.
| Package Type | TO-247 SMD |
|---|---|
| Gate Threshold Voltage (Vge(th)) | 20 V |
The maximum lead temperature for soldering is 300 °C for 10 seconds.
