IXGH 38N60 is a ultra-low Vce（sat）IGBT launched by IXYS, with a maximum collector current of 76A and a very low switching loss. It is suitable for AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS) and switch-mode and resonant-mode power supplies.

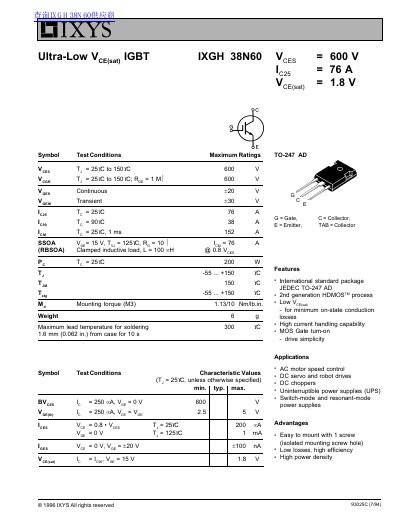

This document is a datasheet for the IXYS IXGH 38N60 IGBT module, which utilizes a TO-247 AD package and a 2nd generation HDMOSTM process. The device is designed for applications requiring high current handling and low on-state conduction losses, such as AC motor speed control and DC servo drives.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current (25°C) | 76 A |
| Collector Current (90°C) | 38 A |
| Collector-Emitter Saturation Voltage | 1.8 V |
| Package Type | TO-247 AD |
| Weight | 6g |
| Thermal Resistance Junction-to-Case | 0.62 K/W |
| Turn-on Delay Time | 30 ns |
The module is suitable for AC motor speed control, DC servo and robot drives, DC choppers, and uninterruptible power supplies.
The maximum lead temperature for soldering is 300 °C for 1.6 mm from the case for 10 seconds.
The mounting torque is 1.13 Nm or 10 lb.in.
