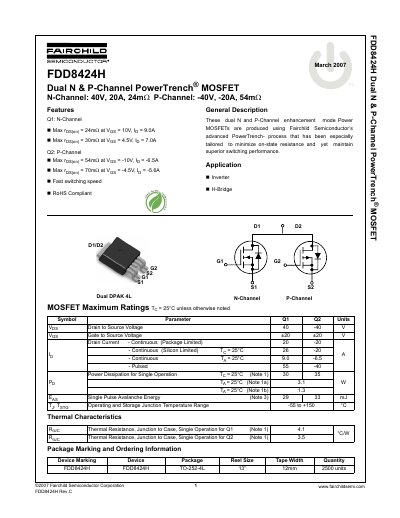

Fairchild Semiconductor FDD8424H Dual MOSFET Datasheet
The FDD8424H is a dual N and P-Channel enhancement mode PowerTrench MOSFET produced by Fairchild Semiconductor. It utilizes an advanced process designed to minimize on-state resistance while maintaining superior switching performance. The device is available in a Dual DPAK package and is RoHS Compliant.
Read onlineFairchild FDD8424H specifications
| Drain to Source Voltage (N-Channel) | 40 V |
|---|---|
| Drain to Source Voltage (P-Channel) | -40 V |
| Continuous Drain Current (N-Channel) | 20 A |
| Continuous Drain Current (P-Channel) | -20 A |
| On-Resistance (N-Channel) | 24 mQ |
| On-Resistance (P-Channel) | 54 mQ |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | TO-252-4L |
Source: Fairchild Semiconductor FDD8424H Dual MOSFET Datasheet
All Fairchild FDD8424H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current for the N-Channel?
The maximum continuous drain current for the N-Channel is 20 A.
From: Fairchild Semiconductor FDD8424H Dual MOSFET Datasheet
Is the FDD8424H RoHS Compliant?
Yes, the document lists the device as RoHS Compliant.
From: Fairchild Semiconductor FDD8424H Dual MOSFET Datasheet
What is the maximum power dissipation for single operation?
The maximum power dissipation is 30W when the temperature is 25°C.
From: Fairchild FDD8424H_F085A Dual N & P-Channel MOSFET Datasheet
What are the operating and storage junction temperature ranges?
The device operates and stores within a range of -55 to +150 °C.
From: Fairchild FDD8424H_F085A Dual N & P-Channel MOSFET Datasheet
