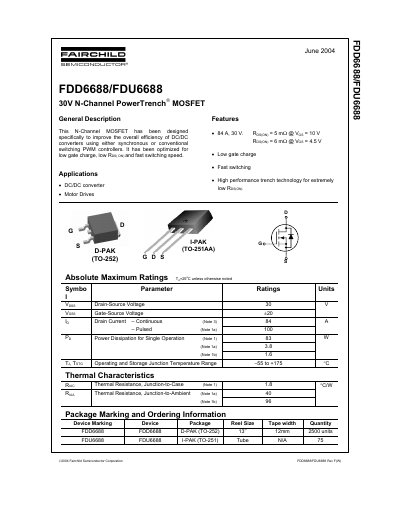

Fairchild Semiconductor FDD6688/FDU6688 30V N-Channel PowerTrench MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FDD6688 and FDU6688, which are 30V N-Channel PowerTrench MOSFETs. These devices are designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. They are optimized for low gate charge, low on-resistance (Rds(on)), and fast switching speed.
Read onlineFairchild FDD6688 specifications
| Drain-Source Voltage | 30 V |
|---|---|
| On-Resistance (Typical) | 5 mΩ |
| Operating Junction Temperature Range | -55 to +175 °C |
| Package Type | D-PAK (TO-252) / I-PAK (TO-251) |
Source: Fairchild Semiconductor FDD6688/FDU6688 30V N-Channel PowerTrench MOSFET Datasheet
All Fairchild FDD6688 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for this MOSFET?
It is designed specifically for DC/DC converters using either synchronous or conventional switching PWM controllers.
From: Fairchild Semiconductor FDD6688/FDU6688 30V N-Channel PowerTrench MOSFET Datasheet
What is the maximum continuous drain current rating?
The device supports a continuous drain current of 84 A.
From: Fairchild Semiconductor FDD6688/FDU6688 30V N-Channel PowerTrench MOSFET Datasheet
