FDD8424H_F085A is a dual N and P channel enhancement mode Power MOSFET produced by Fairchild Semiconductor. It has a 40V on-state voltage and a 20A maximum current, fast switching speed, and is RoHS compliant.

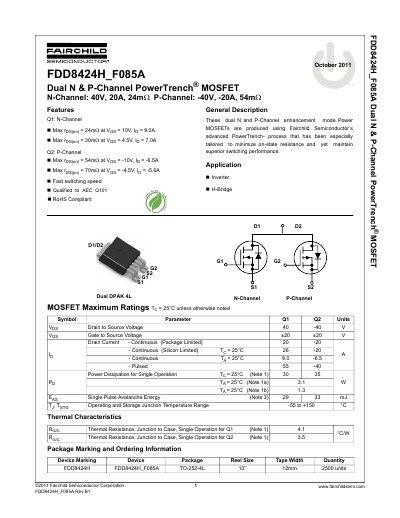

This document is a technical datasheet for the Fairchild Semiconductor FDD8424H_FO85A, which consists of dual N and P-Channel PowerTrench MOSFETs in a Dual DPAK package. The device is designed to minimize on-state resistance while maintaining superior switching performance.
| Drain to Source Voltage (VDS) | 40 V (-40 V for P-Channel) |
|---|---|
| Continuous Drain Current (Package Limited) | 20 A (-20 A for P-Channel) |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | TO-252-4L (Dual DPAK) |
| Process Technology | PowerTrench® |
The maximum power dissipation is 30W when the temperature is 25°C.
The device operates and stores within a range of -55 to +150 °C.
