Key facts
- Brand
- DELL
- Model
- R710
- Category
- Servers Computer
- Industry
- Computers
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-14
Start here

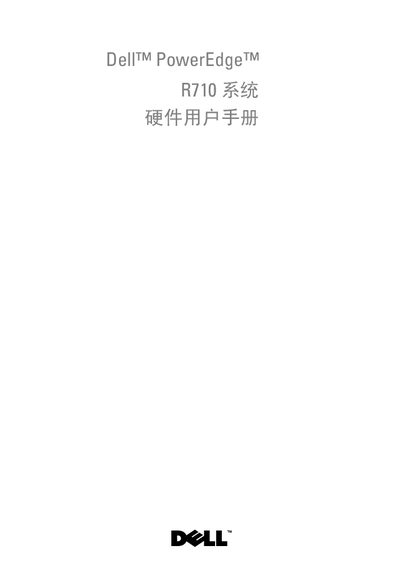

Dell PowerEdge R710 System Hardware User Manual
This manual covers the hardware components of the Dell PowerEdge R710 server, including front and rear panel indicators, LCD panel functions, and internal modules such as memory, processors, storage, and power supplies. Detailed instructions are provided for installing and removing components, configuring the UEFI boot manager, and using the iDRAC6 remote access controller.
Additional sections address system diagnostics, fault isolation for power, cooling, storage, and network interfaces, as well as safety warnings and recommended tools. An index and reference tables help locate specific procedures quickly. This manual is written in Chinese.
DELL R710 specifications
| Form factor | 2U rack height |
|---|---|
| Processor | Intel Xeon 5500 series dual‑ or quad‑core |
| Memory capacity | Up to 144 GB DDR3 across 18 DIMM slots |
| Power supply | Two hot‑swap 570 W or 870 W redundant power supplies |
| Drive bays | Optional 8 × 2.5" or 6 × 3.5" drive bays |
All DELL R710 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I replace the system battery?
The manual describes the procedure for removing and installing the system battery on page 144.
Where can I find the iDRAC6 configuration utility?
The iDRAC6 configuration utility is accessed via the iDRAC configuration program described on page 82.
What management tool does the PowerEdge R710 use?
It uses the Dell OpenManage suite for system management.
How many DIMM slots are available on the R710?
The server provides 18 DIMM slots for memory expansion.
