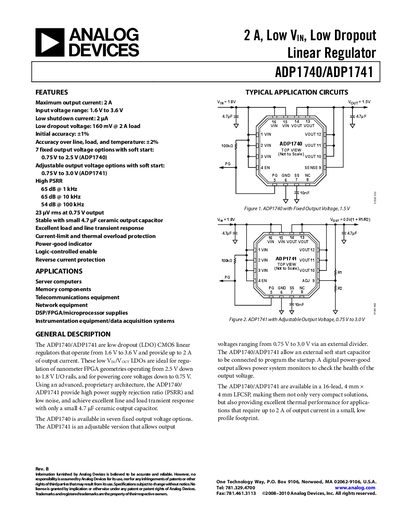

Analog Devices ADP1740/ADP1741 Datasheet
The ADP1740/ADP1741 are low‑Vin/low‑Vout LDO regulators that operate from 1.6 V to 3.6 V and provide up to 2 A of output current. They are suited for server computers, memory components, telecommunications, DSP/FPGA supplies and instrumentation equipment.
Key features include a low shutdown current (2 pA), dropout voltage as low as 160 mV at 2 A load, high power‑supply rejection ratio (65 dB at 1 kHz), soft‑start control, power‑good indicator, reverse‑current protection and a compact 16‑lead LFCSP package (4 mm × 4 mm).
Analog Devices ADP1740 specifications
| Maximum output current | 2 A |
|---|---|
| Input voltage range | 1.6 V to 3.6 V |
| Shutdown current | 2 pA |
| Dropout voltage (2 A load) | 160 mV |
| Power‑supply rejection ratio (1 kHz, 0.75 V output) | 65 dB |
| Output noise (0.75 V output) | 23 pV rms |
| Package | 16‑lead LFCSP, 4 mm × 4 mm |
| Thermal shutdown threshold | 150 °C |
