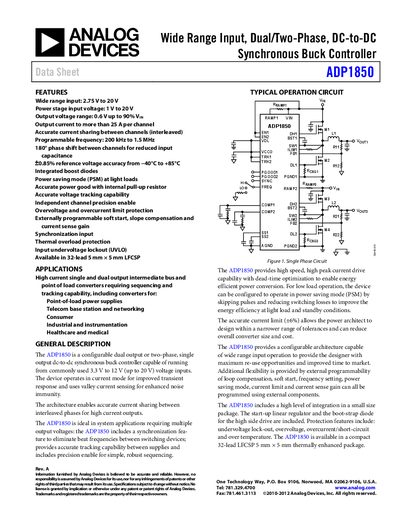

Analog Devices ADP1850 Handbook
The ADP1850 is a configurable dual‑output (or two‑phase single‑output) synchronous buck controller that operates from 2.75 V to 20 V inputs. It supports programmable switching frequencies from 200 kHz to 1.5 MHz and provides accurate current sharing between interleaved phases for high‑current applications.
Typical applications include point‑of‑load power supplies for telecom base stations, consumer electronics, industrial instrumentation, and medical equipment. The device integrates a boost diode, internal linear regulator, and multiple protection mechanisms such as over‑voltage, over‑current, undervoltage lock‑out, and thermal shutdown. Pin configurations, block diagrams, and layout guidelines are provided for designers.
Analog Devices ADP1850 specifications
| Input Voltage (Vin) | 2.75 V to 20 V |
|---|---|
| Output Voltage Range | 0.6 V up to 90 % Vin |
| Output Current per Channel | > 25 A |
| Programmable Frequency | 200 kHz to 1.5 MHz |
| Undervoltage Lockout Threshold (rising) | 2.45 V – 2.75 V |
| Thermal Shutdown Threshold | 155 °C |
| Overvoltage Threshold (FBx) | 0.635 V – 0.665 V |
Source: Analog Devices ADP1850 Handbook
All Analog Devices ADP1850 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the ADP1850?
The ADP1850 operates from 2.75 V up to 20 V input voltage.
How many output channels does the ADP1850 provide?
It is a dual‑output (two‑phase) controller, offering two independent output channels.
