Start here

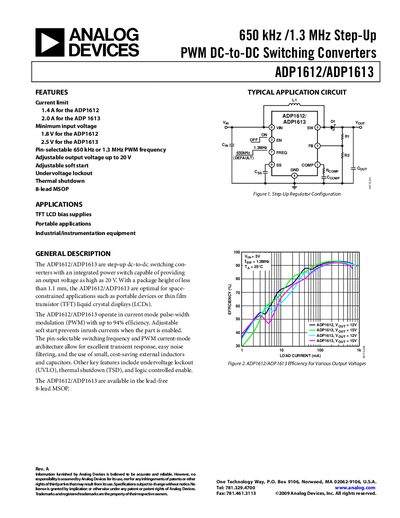

Analog Devices ADP1612/ADP1613 Datasheet Handbook
This handbook describes the ADP1612 and ADP1613 step‑up DC‑DC switching converters, highlighting features such as current limit, selectable switching frequency, adjustable output voltage up to 20 V, and built‑in protection functions. It includes typical application circuits, pin‑out details, and performance graphs.
The document contains full electrical specifications, absolute maximum ratings, thermal characteristics, and design recommendations such as inductor and capacitor selection, PCB layout guidelines, and ordering information.
Analog Devices ADP1612 specifications
| Input Voltage (Vin) – ADP1612 | 1.8 V to 5.5 V |
|---|---|
| Maximum Output Voltage | 20 V |
| Switching Frequency | 650 kHz or 1.3 MHz (pin selectable) |
| Peak Current Limit – ADP1612 | 0.9 A (min) – 1.4 A (typ) – 1.9 A (max) |
| Peak Current Limit – ADP1613 | 1.3 A (min) – 2.0 A (typ) – 2.5 A (max) |
| Thermal Shutdown Threshold | 150 °C |
| Undervoltage Lockout Threshold – ADP1612 (rising) | 1.70 V |
| Enable Pin Bias Current | 3.3 µA (min) – 7 µA (max) |
All Analog Devices ADP1612 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What switching frequencies can be selected for the ADP1612/ADP1613?
The device can be set to either 650 kHz or 1.3 MHz using the FREQ pin.
What is the maximum output voltage the converters can provide?
Both converters can generate an adjustable output voltage up to 20 V.
What is required to enable the soft‑start feature?
Place a capacitor between the SS pin and GND; the capacitor charges at power‑up to limit the inrush current.
From: Analog Devices ADP1612 Step-Up DC-DC Converter Datasheet
What is the maximum output voltage the ADP1612 can provide?
The converter can generate an output voltage as high as 20 V.
From: Analog Devices ADP1612 Step-Up DC-DC Converter Datasheet
