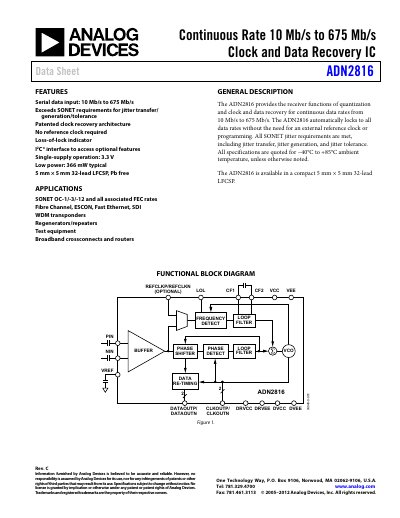

Analog Devices ADN2816 Data Sheet Rev C
The ADN2816 is a continuous‑rate clock and data recovery IC that operates from 10 Mb/s to 675 Mb/s without an external reference clock. It provides loss‑of‑lock indication, I2C programmable features, and low‑power single‑supply operation.
The document includes sections on features, applications, functional block diagram, detailed specifications, pin configuration, I2C interface timing, jitter performance, and ordering information, allowing designers to integrate the device into SONET, Fibre Channel, Ethernet, and test equipment designs.
Analog Devices ADN2816 specifications
| Data Rate Range | 10 Mb/s to 675 Mb/s |
|---|---|
| Supply Voltage | 3.0 V to 3.6 V |
| Operating Temperature Range | −40 °C to +85 °C |
| I2C Clock Frequency | 400 kHz |
| Package | 32‑lead LFCSP, 5 mm × 5 mm |
All Analog Devices ADN2816 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the ADN2816?
The differential input pins accept a voltage range of 1.8 V to 2.8 V.
How fast does the loss‑of‑lock indicator respond at 10 Mb/s?
The loss‑of‑lock response time is 4 ms at a 10 Mb/s data rate.
Does the ADN2816 require an external reference clock?
No, the ADN2816 automatically locks to all data rates without the need for an external reference clock.
Which pin provides the loss‑of‑lock indicator?
Pin 16 (LOL) is the loss‑of‑lock indicator and is LVTTL active high.
