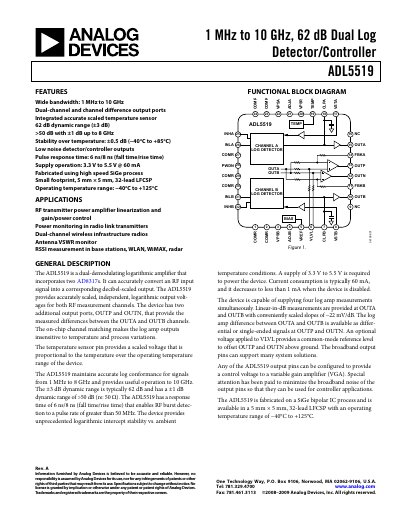

Analog Devices ADL5519 Dual Log Detector/Controller Datasheet
The ADL5519 from Analog Devices is a dual‑channel logarithmic detector and controller designed for RF power measurement and control applications. It integrates two AD8317 log amplifiers and provides independent log‑scaled outputs, difference outputs, and a temperature‑compensated sensor.
The device operates from 3.3 V to 5.5 V, consumes about 60 mA, and is packaged in a 5 mm × 5 mm, 32‑lead LFCSP. It supports a wide frequency range (1 MHz‑10 GHz), offers a 62 dB dynamic range, and includes interfaces for set‑point, voltage reference, power‑down, and temperature compensation.
Analog Devices ADL5519 specifications
| Supply voltage range | 3.3 V to 5.5 V @ 60 mA |
|---|---|
| Dynamic range | 62 dB (±3 dB) |
| Frequency bandwidth | 1 MHz to 10 GHz |
| Operating temperature range | −40 °C to +125 °C |
| Input impedance (typical) | 1670 Ω || 0.47 pF |
| Output slope | −22 mV/dB |
| Package | 5 mm × 5 mm, 32‑lead LFCSP |
| Typical response time | 6 ns fall, 8 ns rise |
Source: Analog Devices ADL5519 Dual Log Detector/Controller Datasheet
All Analog Devices ADL5519 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the ADL5519?
The ADL5519 operates from 3.3 V to 5.5 V and draws about 60 mA.
From: Analog Devices ADL5519 Dual Log Detector/Controller Datasheet
How many channels does the ADL5519 provide?
It is a dual‑channel device, offering two independent log‑detector channels.
From: Analog Devices ADL5519 Dual Log Detector/Controller Datasheet
What frequency range does the ADL5519 cover?
The ADL5519 operates from 1 MHz up to 10 GHz.
What supply voltage and current does the device require?
It runs from 3.3 V to 5.5 V and draws about 60 mA.
