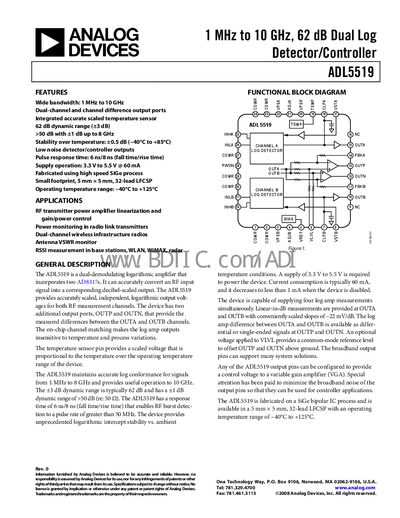

This datasheet provides the features and specifications of 1 MHz to 10 GHz, 62 dB Dual Log Detector/Controller ADL5519.
The ADL5519 is a dual‑demodulating logarithmic amplifier that converts RF input signals to decibel‑scaled outputs. It provides independent logarithmic outputs for two measurement channels and includes additional difference outputs and an on‑chip temperature sensor.
Designed for RF transmitter power‑amplifier linearization, power monitoring, VSWR monitoring and RSSI measurement, the device operates from –40 °C to +125 °C and is supplied by 3.3 V‑5.5 V at 60 mA in a 5 mm × 5 mm 32‑lead LFCSP package.
| Frequency range | 1 MHz – 10 GHz |
|---|---|
| Dynamic range | 62 dB (+3 dB), >50 dB up to 8 GHz |
| Supply voltage | 3.3 V – 5.5 V @ 60 mA |
| Operating temperature range | –40 °C to +125 °C |
| Input impedance | 1.67 kΩ || 0.47 pF (typical) |
| Output slope | –22 mV/dB |
The ADL5519 operates from 1 MHz up to 10 GHz.
It runs from 3.3 V to 5.5 V and draws about 60 mA.
Typical dynamic range is 62 dB (+3 dB) and exceeds 50 dB up to 8 GHz.
The device is specified for –40 °C to +125 °C.
