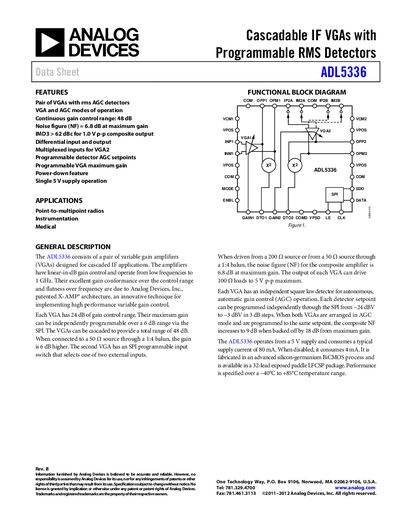

Analog Devices ADL5336 Product Handbook
The ADL5336 is a dual variable‑gain amplifier (VGA) designed for cascaded IF applications up to 1 GHz. Each VGA provides 24 dB of gain control, which can be programmed for a total of 48 dB, and includes an independent square‑law detector for automatic gain control. The device is supplied from a single 5 V rail and is intended for point‑to‑multipoint radios, instrumentation, and medical equipment.
Key features include programmable gain via SPI, a power‑down mode, differential inputs and outputs, and a typical supply current of 80 mA. The handbook provides detailed specifications, pin configuration, timing diagrams, absolute maximum ratings, and typical performance curves to aid designers in integrating the ADL5336 into their systems.
Analog Devices ADL5336 specifications
| Frequency Range | up to 1 GHz (3 dB bandwidth) |
|---|---|
| Supply Voltage | 4.5 V to 5.5 V |
| Total Supply Current (enabled) | 80 mA |
| Supply Current (disabled) | 4 mA |
| Noise Figure (max gain) | 6.8 dB |
| Maximum Output Voltage | 5 V p‑p differential |
| Gain Control Range | 48 dB total (two 24 dB stages) |
| Operating Temperature Range | ‑40 °C to +85 °C |
