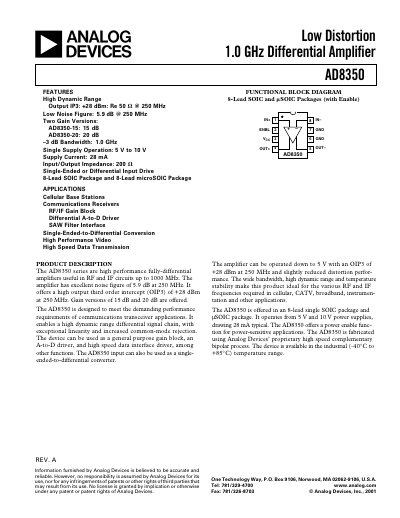

Analog Devices AD8350 Low Distortion 1.0 GHz Differential Amplifier Datasheet
The AD8350 is a high‑performance fully‑differential amplifier designed for RF and IF applications up to 1 GHz. It provides excellent noise performance (5.9 dB NF at 250 MHz) and high output third‑order intercept (+28 dBm at 250 MHz). Two gain versions are available, 15 dB (AD8350‑15) and 20 dB (AD8350‑20), and the device can be powered from a single 5 V–10 V supply while drawing about 28 mA.
Typical applications include cellular base‑station front‑ends, communications receivers, A‑to‑D drivers, and high‑speed data interfaces. The part is offered in 8‑lead SOIC and micro‑SOIC packages and includes an enable pin for power‑sensitive designs. Ordering information, pin descriptions, absolute maximum ratings, and detailed performance graphs are provided in the document.
Analog Devices AD8350 specifications
| Supply Current (5 V) | 28 mA |
|---|---|
| Supply Voltage Range | 5 V to 10 V |
| Input/Output Impedance | 200 Ω |
| Noise Figure (250 MHz) | 5.9 dB |
| Output IP3 (250 MHz) | +28 dBm |
