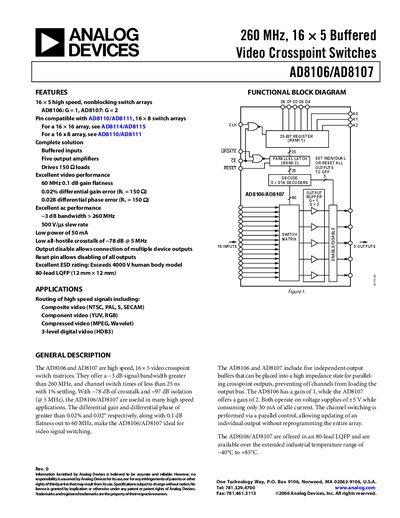

Analog Devices AD8106/AD8107 Video Crosspoint Switches Datasheet
The AD8106 and AD8107 are 16 × 5 high‑speed, non‑blocking video crosspoint switch arrays designed for routing composite, component and compressed video signals. They provide a –3 dB bandwidth greater than 260 MHz, low crosstalk (‑78 dB at 5 MHz) and selectable gain (AD8106 = 1, AD8107 = 2). The devices operate from a +5 V supply and draw only 30 mA of idle current.
Both parts are offered in an 80‑lead LQFP package and are qualified for an extended industrial temperature range of –40 °C to +85 °C. The datasheet includes functional block diagrams, pin descriptions, electrical specifications, timing characteristics and layout recommendations for optimal performance.
Analog Devices AD8106 specifications
| -3 dB Bandwidth | > 260 MHz |
|---|---|
| Supply Current (outputs enabled, no load) | 30 mA |
| Operating Temperature Range | -40°C to +85°C |
| Output Current | 20 mA (AD8106) / 40 mA (AD8107) |
| Supply Voltage Range | +5.5 V to +45 V |
Source: Analog Devices AD8106/AD8107 Video Crosspoint Switches Datasheet
All Analog Devices AD8106 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the gain of the AD8106?
The AD8106 has a gain of 1.
From: Analog Devices AD8106/AD8107 Video Crosspoint Switches Datasheet
What is the gain of the AD8107?
The AD8107 offers a gain of 2.
From: Analog Devices AD8106/AD8107 Video Crosspoint Switches Datasheet
What is the supply voltage range for the AD8106/AD8107?
The devices operate from +5 V up to +45 V.
From: Analog Devices AD8106/AD8107 Video Crosspoint Switch Datasheet
How many inputs and outputs does the AD8106 have?
The AD8106 provides 16 inputs and 5 independent outputs.
From: Analog Devices AD8106/AD8107 Video Crosspoint Switch Datasheet
