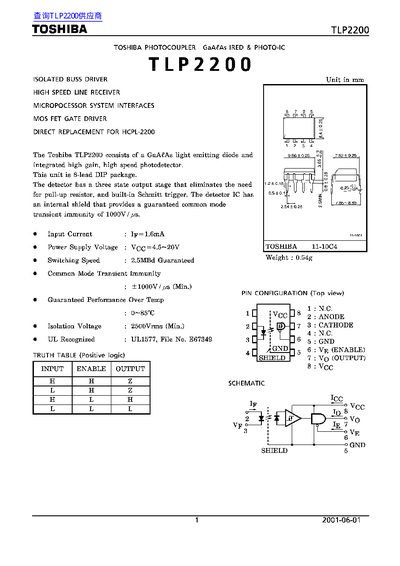

Toshiba TLP2200 Optocoupler Datasheet
The TLP2200 is an isolated bus driver and high‑speed line receiver that combines a GaAs LED with a high‑gain photodetector in an 8‑lead DIP package. It features a three‑state output, built‑in Schmitt trigger, and internal shielding for 1000 V/µs common‑mode transient immunity.
The datasheet lists key specifications such as input current, supply voltage range, isolation voltage, propagation delay, and power dissipation, and includes recommended operating conditions, switching characteristics, test circuits, and usage restrictions for reliable integration in electronic designs.
Toshiba TLP2200 specifications
| Input Current (ON) | 1.6 mA |
|---|---|
| Supply Voltage | 4.5‑20 V |
| Isolation Voltage | 2500 Vrms (min) |
| Output Rise Time | 85 ns |
| Package Power Dissipation | 210 mW |
All Toshiba TLP2200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended supply voltage range for the TLP2200?
The device operates with a supply voltage between 4.5 V and 20 V.
What is the isolation voltage rating of the TLP2200?
It provides a minimum isolation voltage of 2500 Vrms.
What supply voltage range is recommended for the TLP2200?
The recommended supply voltage (VCC) is 4.5 V to 20 V.
What is the isolation voltage rating of the TLP2200?
The device provides an isolation voltage of at least 2500 Vrms.
